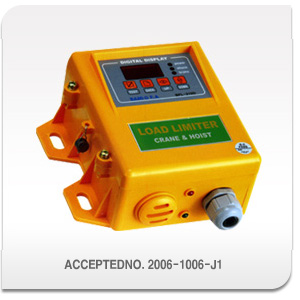

Over Load Limiter : BFL-210D (Only for Hoist)

- It is made of the products certified by the Korea Occupational Safety and Health Agency.
- When a Hoist Crane is operated, the motor current value is shown as a digital value.
- When an operator disconnects the control power arbitrarily, a circuit with which the crane operation is stopped is used.
- It is made to use the electrolysis capacity at least from 0.01A to 999A by using only one type.
- Malfunction is prevented by operating the compensator operated when the voltage is changed.
- In case that an over load occurs, it returns dropping as much as the elevated height. Securing the safety
- When a Hoist Crane is operated, the current value of the crane is indicated as digital values. It is made in order for the first gear for Operation Function and the second gear (low- and high-speed) for Control Function to be used simply depending on the kind of a crane.
- Convenience is secured since the data set values can be set by using only 3 buttons.
- The outer box is a product whose durability is strong since it is made of a special PC material which is strong to resist against the external impact.

■ Power : For both AC 110V and 220V ■ Available power :
Automatic Setting: 0.01A~ 1,000A
■ START TIME : 0.1sec ~ 9.9 sec ■ Temperature :
Surface Temperature : -20℃ ~ + 85℃
■ SHOCK TIME : 0.1sec ~ 9.9 sec ■ Consumed powe : 2VA
■ RESET TIME : 0.1sec ~ 9.9 sec ■ Size of the product :
Width: 120, Length: 140, Height: 70
■ Power generating point :
AC250V 5A NO.OUT		 ■ Weight: 2kg
■ DISPLAY : 7 Segment Digital Red Led
