Anti-Collision Device of Crane

---

Infrared light-type anti-collision device of crane
(Crane Collision Preventing Equipment By Infrared Rays)

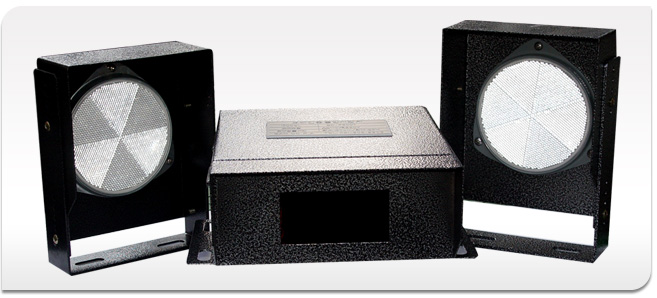

BD-P500A/P500T

- Infrared ray detection-type crane collision preventing device. - 2 step output controlling by warning with the 1st signal and then stopping the crane with the 2nd signal. - The detection distance can be adjusted from 0.3m to 25m. - There is a controlling method by detecting a crane and a person on the running path of the crane in order to prevent both objects from being clashed depending on the type of detecting sensor. - Switching on the yellow lamp by the 1st detection (Variable Adjustment from 30cm to 25m) - Switching on the red lamp by the 2nd detection (Variable Adjustment by 30% to 70% of the 1st Set Value) - The direct reflection-type detection distance is 5meter without using a reflection mirror.

Product Crane collision preventing device with infrared rays model Inside use BD-P500A Outside use BD-P500T Operation voltage) For both AC100V and 200V Light source Infrared rays Diode Lights PHOTO DIODE Inspection range Primary inspection 30cm~25m adjustable secondary inspection 30~80% of the primary inspection range Exterior lights 7600 Lux Response range Maximum Distance : Less than 10% Energy consumption 10VA Power generating method 1st Detection : Inside use ON display when generating RELAY 2st Detection : Outside use ON display when generating LELAY Motion display Primary inspection green light, secondary inspection red light Materials Outside use Stainless, Water-proof, dust-Proof Inside use Steel, Water-proof, dust-Proof Weight 4.2kg including reflection mirrors
